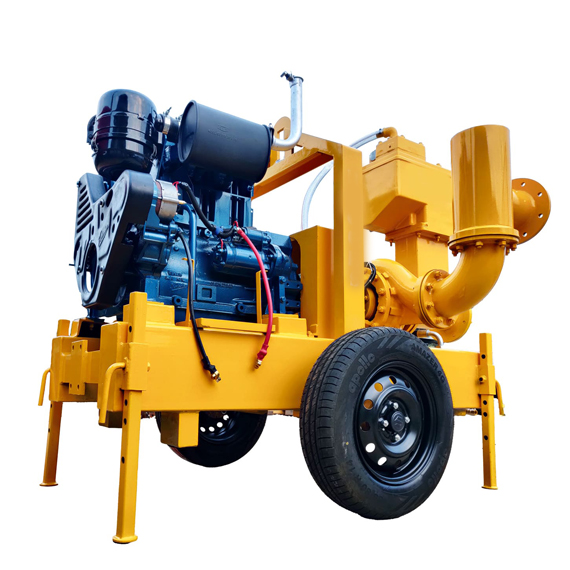

6 inch op type dewatering pump

  • Home
  • 6 inch op type dewatering pump

Pump Details

Model ORX - 150 OP
Vacuum Capacity 70 cfm
Max.water flow 350m3/hr
Suction x Discharge 6” x 6” (150 mm x 150 mm)
Max. Head 40 mtr.
Max.suction lift 9 mtr
Max solid handling 2"
Volute Housing High Grade cast Iron
Pump Shaft Stainless steel, SS – 304
Impeller Stainless Steel, SS – 304
Stuffing Box Stainless Steel, SS - 304 with Double Mechanical seal immersed in oil bath for better efficiency & longer durability
Priming Tank Mild Steel
Mounting Portable Four wheel chassis with built in fuel tank having a fuel Capacity of 160 liters.

Engine Details

Engine KIRLOSKAR HA 394, 3 Cylinder, Air cooled Diesel Engine
Capacity 38 HP
Speed 1800 RPM
Starting Electric with starter Motor, Charging Alternator, Oil Bath Air cleaner, fuel Injection Pump, Oil filter, Engine mounted Exhaust Silencer, Manual Shut off, Wire Harness & Starting panel
dewatering pumps sales rentals projects in dubai saudi

Orax Roots 6" dewatering pumps in Dubai.

6 inch dewatering pump, with model no. ORX-150 OP, which is available in diesel or electric models. Other options and sizes are also available according to customer requirements. Orax Roots are one of the top vendors of jetting pumps in UAE where well points need to be installed without drilling Categories : Dewatering pumps, well points, well point dewatering system, drilling works, jetting pumps suppliers in UAE, tunnelling.

This Pump is suitable for Dewatering, Sewerage Drainage and fuel transaction. The pumps have closed type impeller with mechanical seal. (Open type impeller also available). Priming Tank is made of Mild Steel (Stainless Steel also available) and the internal parts are of Teflon, Stainless Steel & Bronze which increase the life and efficiency of the pump. Volute is Cast Iron (Stainless Steel also available) & Discharge Head is Mild Steel (Stainless Steel also available) and it is designed in such a way that the shape gives better discharge. Shaft, Impeller, Stuffing box and all other internal parts are made of stainless steel. We are manufacturing pumps as per the demand of the customer requirement like open impeller pumps, Electric Motors driven pumps with pneumatic 2 wheels on the road and solid tyre 4 wheel trolley types.
