Model | ORX - 100 |
Vacuum Capacity | 70 cfm |
Max.water flow | 200m3/hr |
Suction x Discharge | 4” x 4” (100 mm x 100 mm) |
Max. Head | 40 mtr. |
Max.suction lift | 9 mtr |
Max solid handling | 2" |
Volute Housing | High Grade cast Iron |
Pump Shaft | Stainless steel, SS – 304 |
Impeller | Stainless Steel, SS – 304 |
Stuffing Box | Stainless Steel, SS - 304 with Double Mechanical seal immersed in oil bath for better efficiency & longer durability |
Priming Tank | Mild Steel |
Mounting | Portable Four wheel chassis with built in fuel tank having a fuel Capacity of 120 liters. |
Engine | KIRLOSKAR HA 394, 3 Cylinder, Air cooled Diesel Engine |
Capacity | 32 HP |
Speed | 1500 RPM |
Starting | Electric with starter Motor, Charging Alternator, Oil Bath Air cleaner, fuel Injection Pump, Oil filter, Engine mounted Exhaust Silencer, Manual Shut off, Wire Harness & Starting panel |

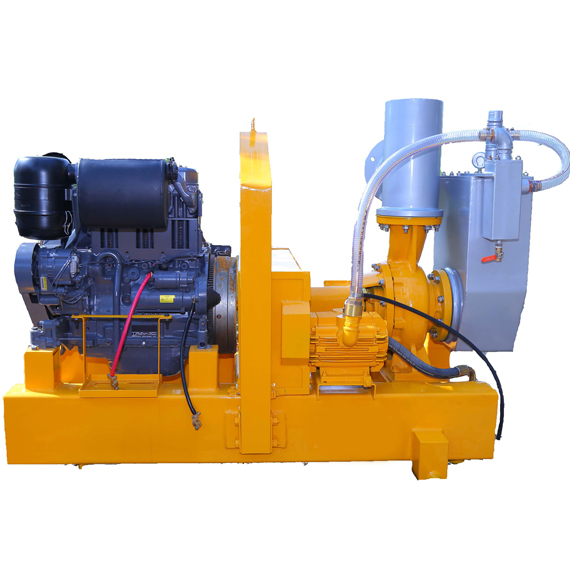

4 inch dewatering pump, with model no. ORX-100, which is available in diesel or electric models. Other options and sizes are also available according to customer requirements. Orax Roots are one of the top vendors of jetting pumps in UAE where well points need to be installed without drilling Categories : dewatering pumps, well points, well point dewatering system, drilling works, jetting pumps suppliers in UAE, tunnelling.
This Pump is suitable for Dewatering, Sewerage Drainage and fuel transaction. The pumps have closed type impeller with mechanical seal. (Open type impeller also available). Priming Tank is made of Mild Steel (Stainless Steel also available) and the internal parts are of Teflon, Stainless Steel & Bronze which increase the life and efficiency of the pump. Volute is Cast Iron (Stainless Steel also available) & Discharge Head is Mild Steel (Stainless Steel also available) and it is designed in such a way that the shape gives better discharge. Shaft, Impeller, Stuffing box and all other internal parts are made of stainless steel. We are manufacturing pumps as per the demand of the customer requirement like open impeller pumps, Electric Motors driven pumps with pneumatic 2 wheels on the road and solid tyre 4 wheel trolley types.
