6 inch hd type dewatering pump

  • Home
  • 6 inch hd type dewatering pump

Pump Details

Model ORX - 150 HD
Vacuum Capacity 70 cfm
Max.water flow 350m3/hr
Suction x Discharge 6” x 6” (150 mm x 150 mm)
Max. Head 40 mtr.
Max.suction lift 9 mtr
Max solid handling 2"
Volute Housing High Grade cast Iron
Pump Shaft Stainless steel, SS – 304
Impeller Stainless Steel, SS – 304
Stuffing Box Stainless Steel, SS - 304 with Double Mechanical seal immersed in oil bath for better efficiency & longer durability
Priming Tank Mild Steel
Mounting Portable Four wheel chassis with built in fuel tank having a fuel Capacity of 160 liters.

Engine Details

Engine KIRLOSKAR HA 394, 3 Cylinder, Air cooled Diesel Engine
Capacity 38 HP
Speed 1800 RPM
Starting Electric with starter Motor, Charging Alternator, Oil Bath Air cleaner, fuel Injection Pump, Oil filter, Engine mounted Exhaust Silencer, Manual Shut off, Wire Harness & Starting panel
dewatering pumps sales rentals projects in dubai saudi

Orax Roots 6" Hd pumps in Dubai.

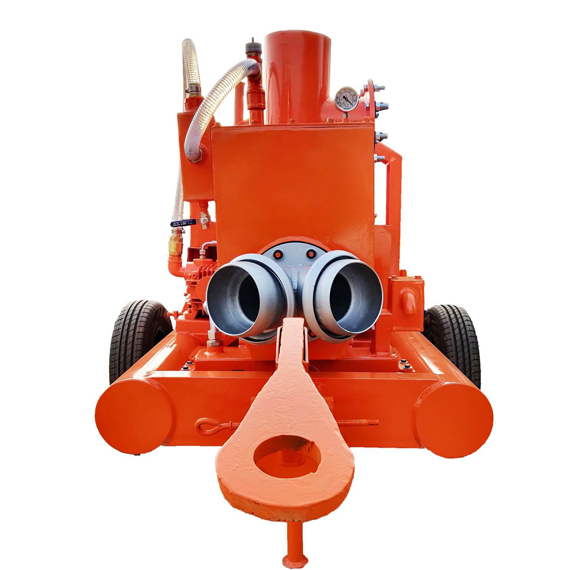

6 inch hd pump, with model no. ORX-150 HD, which is available in diesel or electric models. Other options and sizes are also available according to customer requirements. Orax Roots are one of the top vendors of jetting pumps in UAE where well points need to be installed without drilling Categories : Hudig pumps, well points, well point dewatering system, drilling works, jetting pumps suppliers in UAE, tunnelling.

This Pump is suitable for Dewatering, Sewerage Drainage and fuel transaction. The pumps have closed type impeller with mechanical seal. (Open type impeller also available). Priming Tank is made of Mild Steel (Stainless Steel also available) and the internal parts are of Teflon, Stainless Steel & Bronze which increase the life and efficiency of the pump. Volute is Cast Iron (Stainless Steel also available) & Discharge Head is Mild Steel (Stainless Steel also available) and it is designed in such a way that the shape gives better discharge. Shaft, Impeller, Stuffing box and all other internal parts are made of stainless steel. We are manufacturing pumps as per the demand of the customer requirement like open impeller pumps, Electric Motors driven pumps with pneumatic 2 wheels on the road and solid tyre 4 wheel trolley types.

Related tags : 6”dewatering companies in Al Khobar , 6”dewatering companies in KSA, dewatering companies in Al Khobar , dewatering companies in Al Khobar , dewatering companies in Al Khobar , dewatering system in KSA, 6 inch dewatering pumps in Al Khobar , 6 inch pumps in Al Khobar , varisco pumps in Al Khobar , dewatering pumps images videos in Al Khobar , dewatering pumps videos in youtube Al Khobar , dewatering companies in Al Khobar , construction dewatering companies in al khobar, 6” varisco dewatering pumps rentals in Al Khobar , underground water control pumps in KSA, complete dewatering solution in Al Khobar , waste water treatment companies in Al Khobar , flood clearing pumps in Al Khobar , sewage water treatments companies in Al Khobar , drainage system clearing pumps in KSA, dewatering fittings accessories in Al Khobar , 6” varisco dewatering pumps spare parts in Al Khobar , 6”dewatering pumps engines in Al Khobar , 6” varisco kirloskar pumps in KSA, 6”kirloskar engines in Al Khobar , wellpoint deepwell pumps in Al Khobar , dewatering hoses suppliers in Al Khobar , 6”dewatering pumps suppliers in Al Khobar , 6” varisco dewatering pumps manufacturing companies in Al Khobar , 6”dewatering pumps repairs services in saudi arabia, 6”centrifugal pumps in Al Khobar , 6”irrigation pumps in Al Khobar contact us Orax Roots Dewatering Pumps, 6 inch heavy duty pumps in Saudi, high pressure pumps in Saudi, sewage pumps in ksa, dewatering pumps for construction, dewatering pumps in 38hp Saudi Arabia.
